LINKERT  DC CARBURETOR Parts
WANTED - We buy rebuildable cores,  NOS ,
reproduction, and used parts for all Schebler, M-series & DC model Linkert carbs.
Contact us at
EMAIL  or call us .
Updated 9/04/17


The Linkert DC - In service on various Harley Davidson models  1957 -1966 ---  1957-1966 Servicar, 1957-1965 Sportster,
1966 Shovelhead

Copy of original 1960s Harley DC performance/race modification bulletin click here

Copy of original 1957 DC float adjustment instructions click here.



Linkert DC Gasket Kit
All 1957-1966 DC Models
Complete USA made heavy duty gasket set for all Linkert DC carbs. Includes an o-ring for the bowl vent tube instead of a gasket.
Our own.
USA Made
14.95


Overhaul  kit with heavy duty gaskets  for all Linkert DC carbs.
DC-Overhaul KIT
Kit Includes :
Bowl screws
Bowl gasket
Body gasket
Bowl nut gasket
Intake manifold gasket
Drain screw
Throttle shaft.
Idle passage plug.
Throttle shaft screws
Throttle shaft spring.
Needle & seat assembly.
Needle & seat gasket
Throttle arm lock & idle screws
Overflow vent tube screws
Includes o-ring in place of overflow tube
    paper gasket.
Includes o-ring packing for high speed
      needle
Our own and unavailable anywhere else.

$ 65.00

# 1,2,8,53
Throttle Cable Block End
Attach inner choke or throttle cable to throttle arm. Includes screw & cotter pin.
OEM # 27450-36

$ 10.95


#49

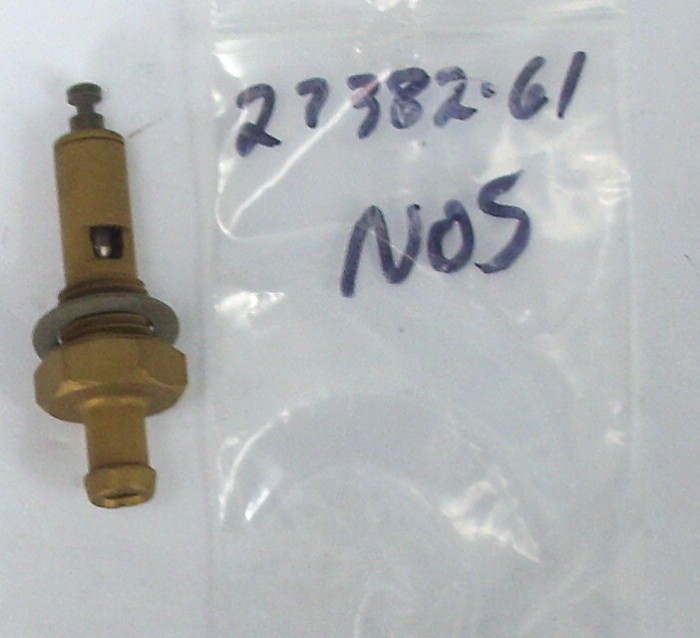

OEM 27382-61
(also  replaces 27382-57 )
Correct needle and seat for all Linkert DC carbs with steel tip needle as original. Dual gas ports for better fuel flow as that was a problem on many Linkert DC carbs. May also be used with Linkert M-series carbs when connecting directly to fuel line without having to use an adapter.
Our own and unavailable anywhere else.
Price shown at right.


Our new 27382-61 needle & seat shown in both styles of Linkert bowls.

M-series on the left and DC model on the right.
Includes 27402-33 gasket.

$  19.95


#3
OEM # 1073W / 1074W
( # 024 )
Idle screw

USA Made
Pack of 4  -   $  7.95

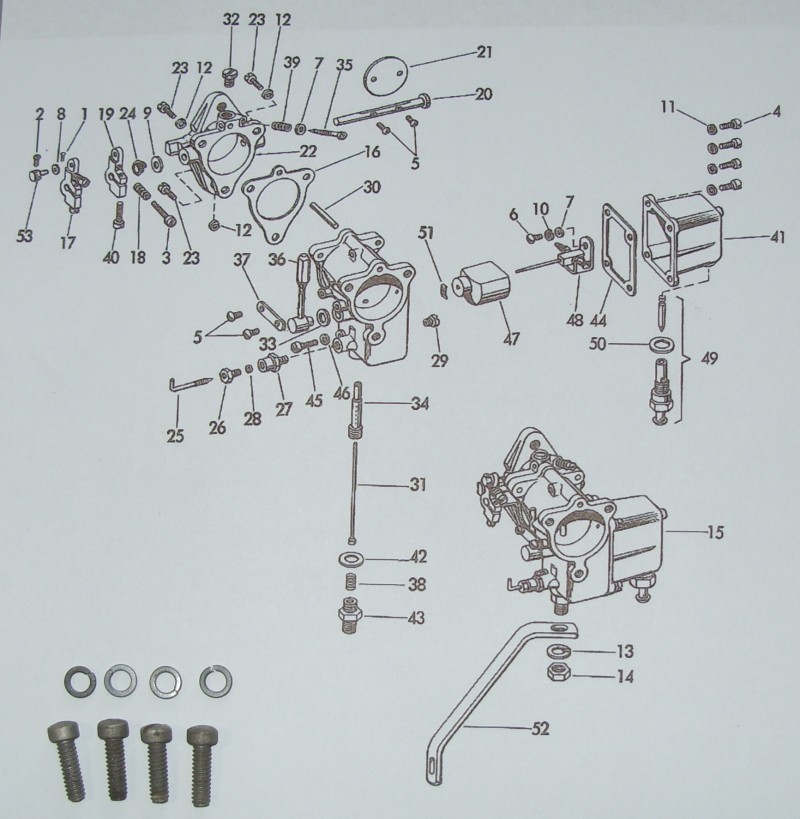

#4 & 11
OEM # 1207W / 7021
Float Bowl Screw Set
 1957 to 1966

Linkert DC carburetors
USA Made
$ 8.95  Set of 4



#5
Screw
OEM # 2574W
 Choke & Throttle Shaft
Correct length, slot head,
Stainless Steel, with soft steel lock washers.

USA Made
  $ 3 .95 / 4


#6
Screw
OEM # 2578B
 Choke & Throttle Shaft
Correct length, slot head,
Stainless Steel, with soft steel lock washers.
USA Made
  $ 3 .95 / 4



#7
OEM # 6075
Washer

#8
OEM # 6182 / 6187
Washer
See above

#9
OEM # 6227
Washer

# 6 Split Lockwasher
OEM # 7010
(Indian 102431)
For use with
993 / 997 screws.
USA Made
Pack of 20  -  $ 1.50




#14
OEM # 7789
Nut, 3/8 x 24


#12
OEM # 7030
#12 Split Lockwasher
USA Made
Pack of 10  -   $ 1.50

#13
OEM # 7045
3/8 lockwasher


#15
Carburetor, complete,
Click here to go to the rebuilt carb page.

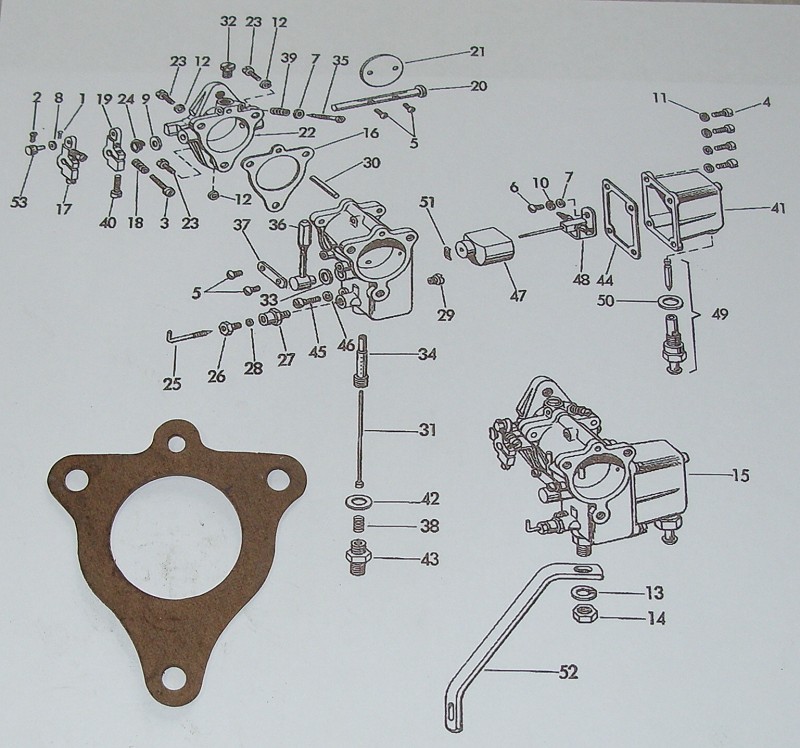

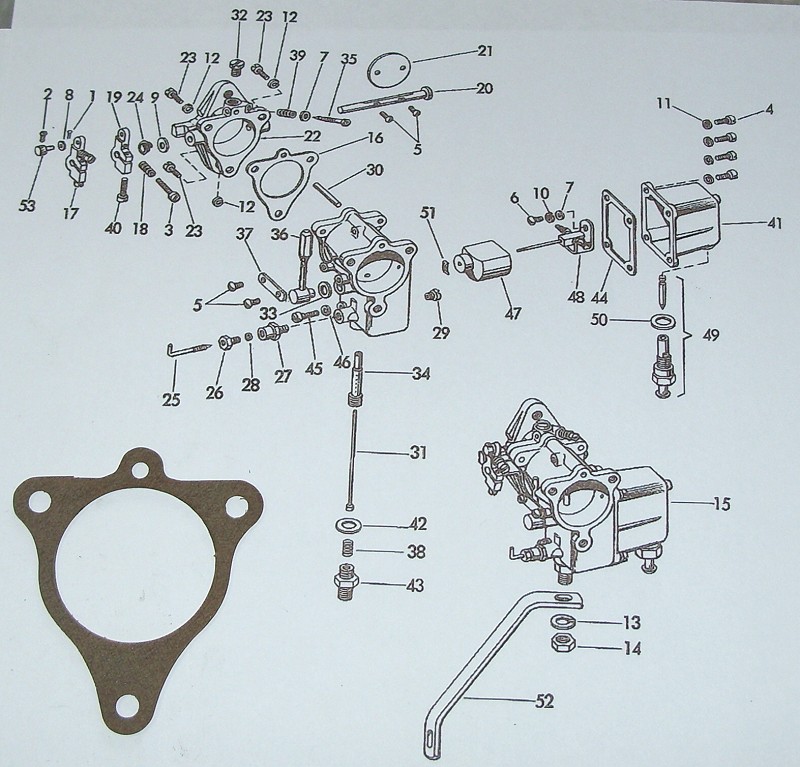

#16
  Body gasket
 1957 to 1966

Linkert DC carburetors
OEM # 27205-57
USA Made
$  2.95 Each


#18
OEM # 27270-49A
NOS
Throttle lever stop spring
$ 2.50




#20
OEM # 27276-57
BILLET Throttle Shaft
All Linkert DC  models.
USA Made
  $ 12.95




#21
OEM # 27280-57
Throttle disc, 9A
Used
$ 29.95





#23
OEM # 27286-57
Body screw

#24
# 27291-32
Spring, throttle shaft.
All Linkerts including 57-66 DC models. 1931-1966
USA Made
  $ 2.95



#25
OEM # 27297-57
Needle valve, high speed.
Stainless steel
USA Made
$ 21.95


#26
OEM # 27301-57
NOS
Packing nut

$ 9.95



#27
OEM # 27302-57
NOS
Needle valve housing

$ 11.95


#28
OEM # 27303-57
Packing ring
( Replacement - O-ring )
USA Made
$  1.05


#29
OEM # 27317-57A
Fixed Jet #4
DC1L, DC6, DC10, DC12
USA Made

$  11.95


#29
OEM # 27316-59
Linkert Fixed Jet #20
 DC2 Carb Only

USA Made

$  11.95

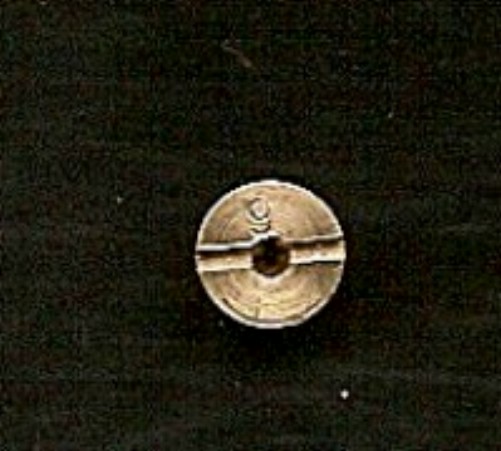

#29
OEM # 27326-54
Linkert Carb Fixed Jet #9
 DC1 Carb Only

USA Made

$  11.95


#29
  Jet # 1
OEM #  27318-41 ( 1249-41 )
Used in  DC1M carb
USA Made
$  11.95

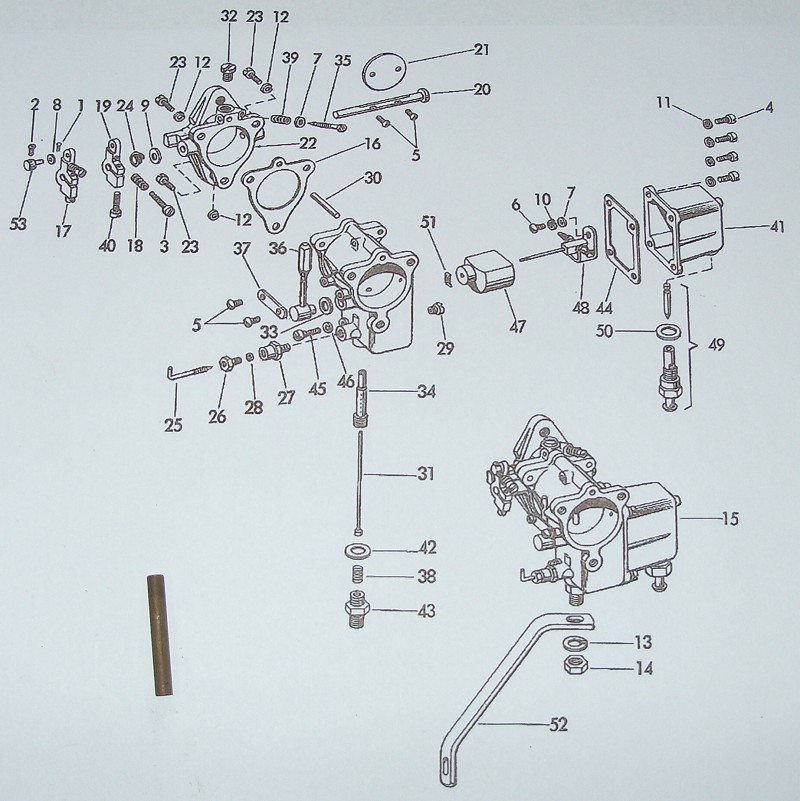

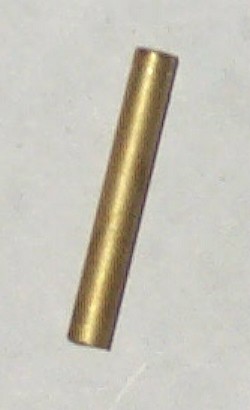

#30
OEM # 27323-57
Tube, idle passage
USA Made
$ 6.95


#31
OEM # 27324-57
Idle tube.
Used only available.
$ 25.00

  Out of stock
See NOS page for NOS parts

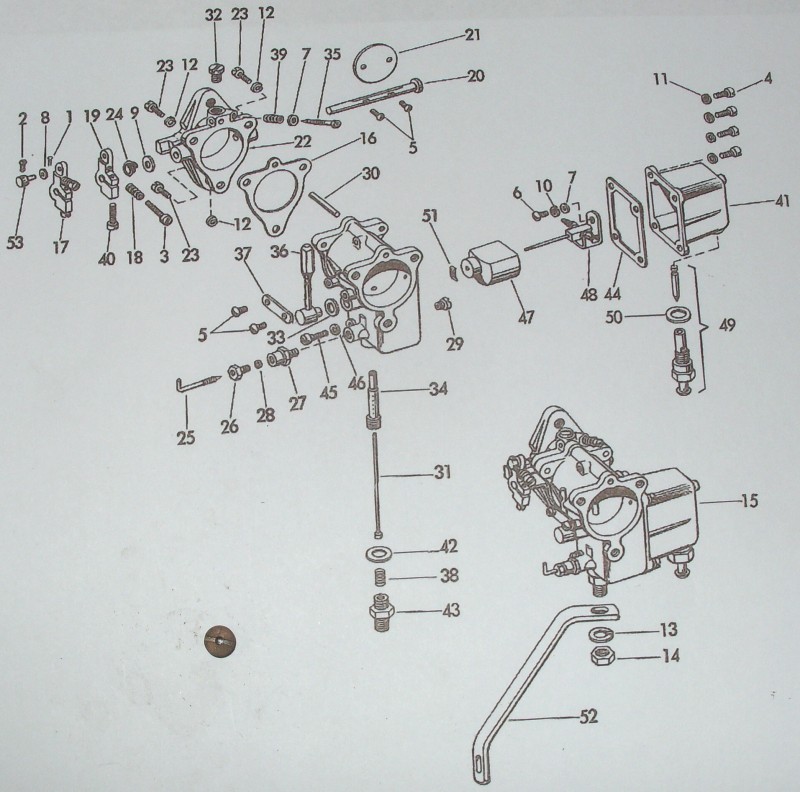

#32
Idle Passage Plug
All 1933-65 Including Linkert DC models.
OEM # 27331-57
USA Made
$3.95 Each

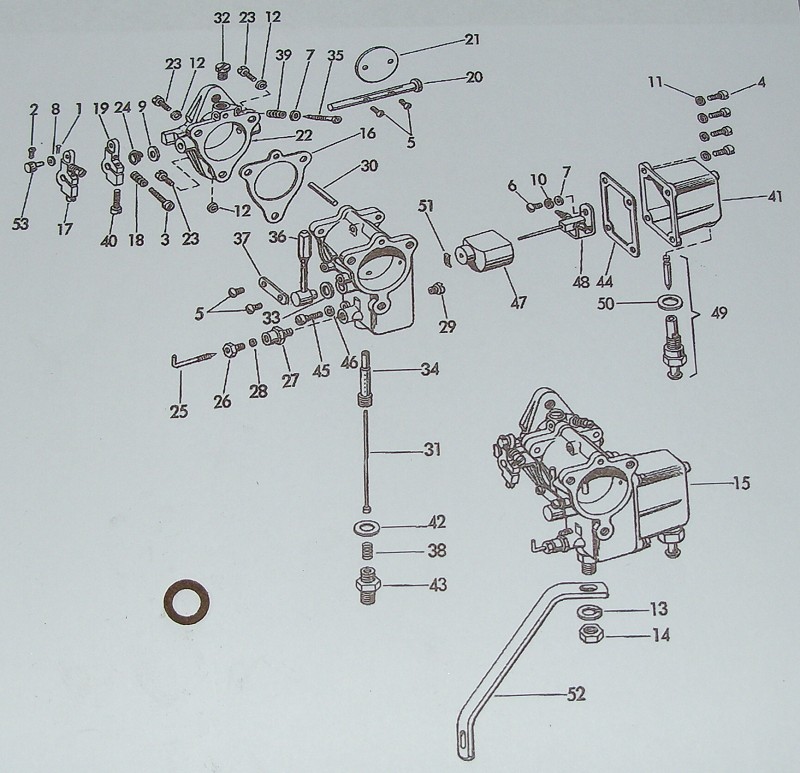

#33
OEM # 27329-57
Seal, nozzle vent
This is an o-ring replacement.
Seals better.
USA Made
$  1.25


#34
OEM 27331-59
Correct main nozzle for all Linkert DC carbs except DC2. (Note that we deepened the slot slightly to help prevent the stripping common to these. We also carry the special tap to clean the body threads.)
USA Made
$ 21.95



#35
OEM # 27339-57
Needle valve, low speed.
Stainless steel
USA Made
$ 21.95

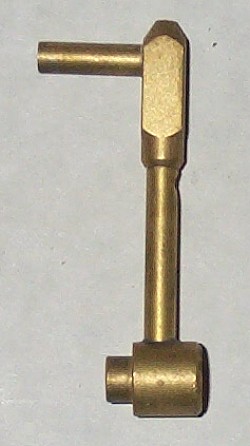

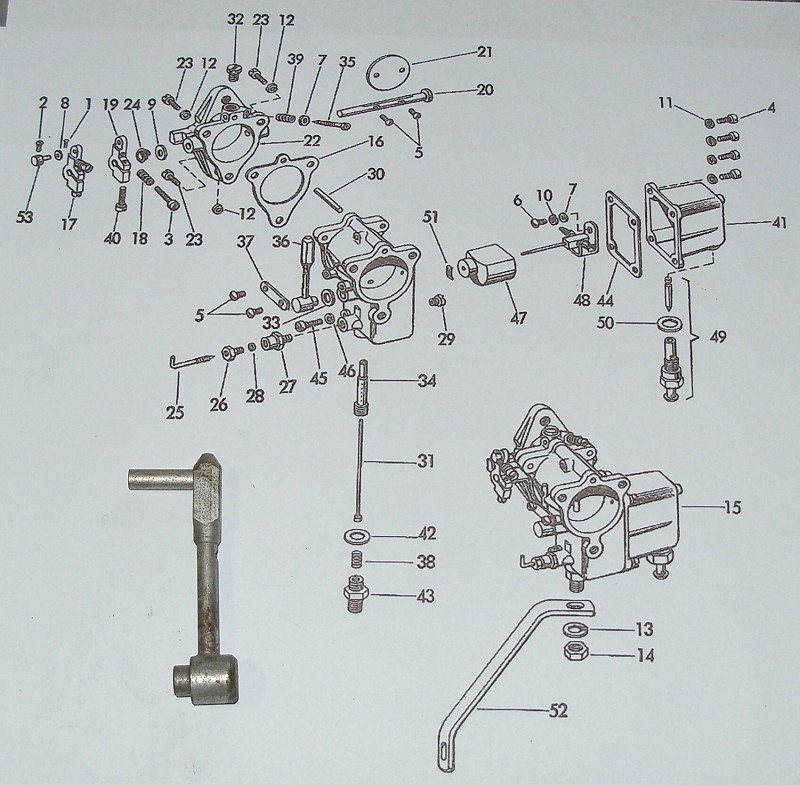

#36
OEM # 27343-57A
Nozzle vent housing
Used
$ 29.95

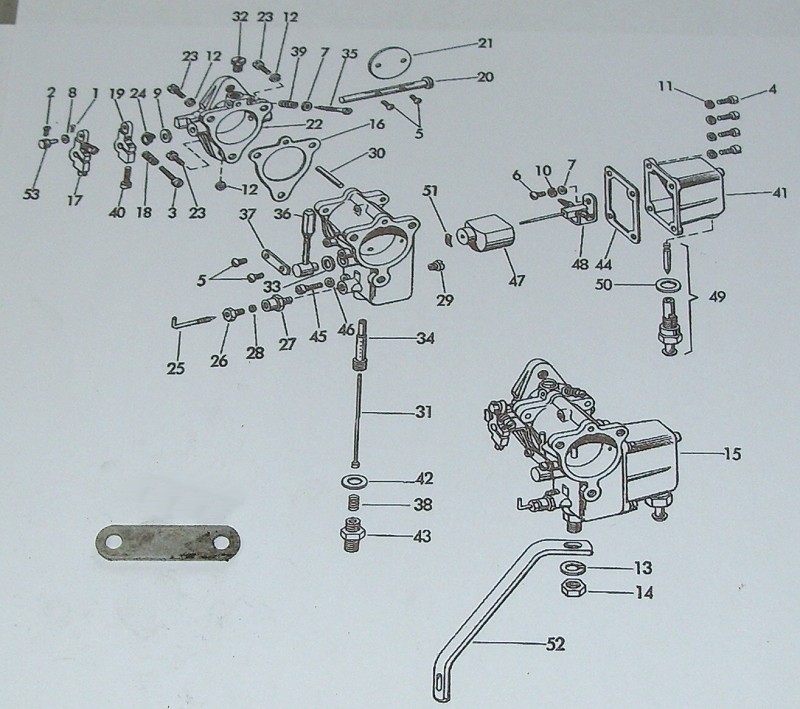

#37
OEM # 27344-57
Clamp, nozzle vent

#38
 STAINLESS STEEL
# 27349-11
Bowl Nut Spring
USA Made
  $ 2.05 Each


#39
OEM # 27349-57
Spring, low speed needle valve

#40
OEM # 27351-57 ( # 024 )
Screw, throttle lever
USA Made

$ 2.35



#41
OEM # 27370-57
Bowl, Early
Used only available.
$ 59.95



OEM # 27370-57
Bowl, Late
Used only available.
$ 49.95


#42
OEM # 27374-57
Carb Body Stud Gasket
 1957 to 1966

Linkert DC carburetors
USA Made
$ 1.95  Each



#43
OEM # 27375-57
Carburetor bowl nut
USA Made

$ 11.95



#50
OEM # 27386-57
( # 27402-33 )
Gasket, float valve seat.
NOS from Linkert.
USA Made

$  .75



#43-OS
OEM # 27375-57OS
Stud, carburetor body, oversize.
Bowl nut threads stripped out ? Here is the fix. This one has larger threads for the carb body and by simply running a tap down for the  stud, then running a tap down for the main nozzle, your carb body is fixed. Use the gasket included and no other modifications.
USA Made

$ 12.95



#42OS
OEM # 27374-57OS
Carb Bowl Stud Gasket
 1957 to 1966
For oversize repair stud.
NOS from Linkert.
USA Made
$ .75



27375-57  Repair Set
Stock size stud, main nozzle tap, spring, nozzle, gasket
 For when you have to drill out the nozzle.

$ 49.95

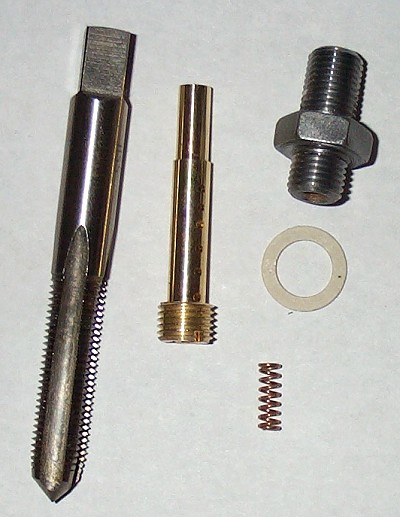

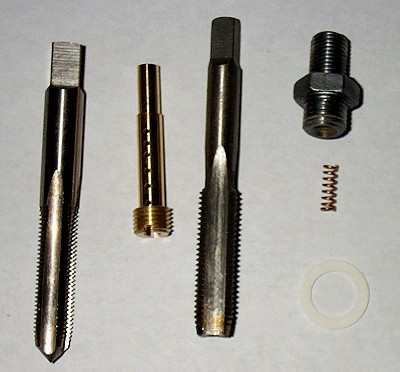

#43-Kit
OEM # 27375-57OS N/S KIT
Stud repair kit, carburetor body, oversize.
Main nozzle, & tap. oversize repair stud & tap, oversize gasket, new spring.
Bowl nut threads stripped out ? Here is the fix. The stud has larger threads for the carb body and the kit even includes the tap for the stud and the tap to clean up threads for the main nozzle.


$ 56.95

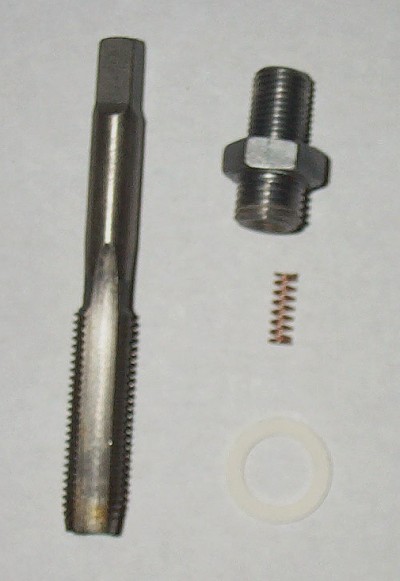

27375-57OS Kit
 Oversize repair stud and tap set. Includes spring & oversize gasket.

$ 24.95

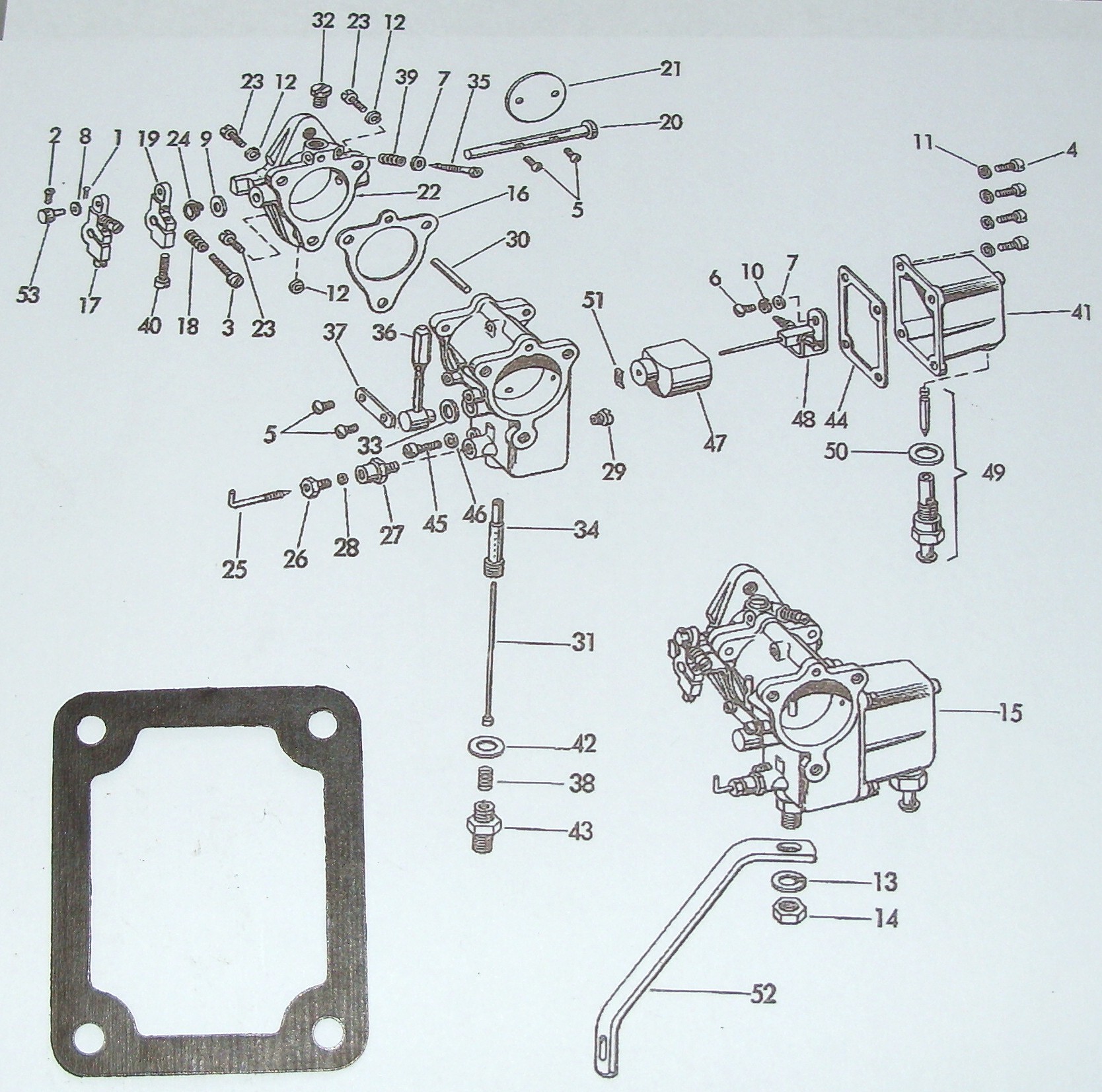

#44
OEM # 27376-57
Float Bowl gasket
 1957 to 1966

Linkert DC carburetors
USA Made
$  2.95 Each

#45
OEM # 27377-57
Drain Plug Screw
 1957 to 1966

Linkert DC carburetors
USA Made
$ 1.85 Each

#46
OEM # 27378-57
Float bowl drain plug gasket
 1957 to 1966

Linkert DC carburetors

( fits tight on some drain screws - thread onto screw first )
USA Made
$ 1.25  Each

#47
OEM # 27380-57, Used

Out of stock
See NOS page for NOS floats

#48
OEM # 27381-57
Float lever & bracket
Used only available.
$ 45.00


#51
OEM # 27387-57
Nut, Float
NOS
$ 1.00


OEM #
Float bowl baffle
Used only available.
$ 12.95



OEM # 27412-57
Insulating spacer
XL , XLH use 1
 XLCH uses 3
Shovelhead uses 2
Can also be used in place of 27412-59 on servicar ( uses 2 )
These are original  NOS Harley Davidson
USA Made

$ 3.25 Each

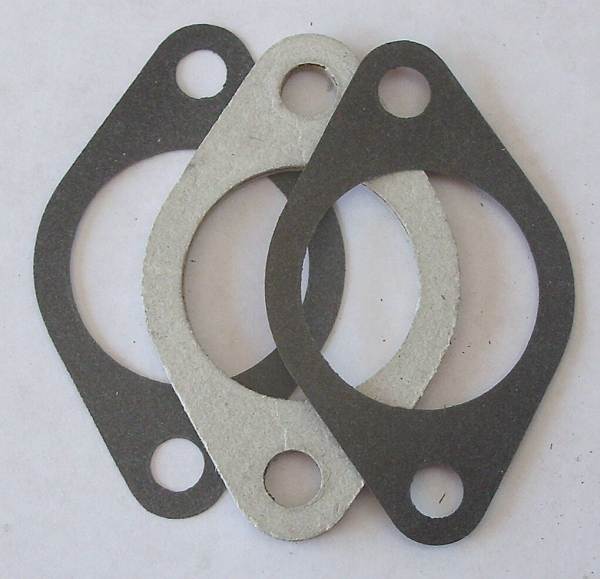

Carburetor Mounting Kit
CMK -1
1957-65 XL, XLH Sportster
1 each - 27412-57 insulator
2 each 27410-57 intake gasket

USA Made

$ 7.25


Carburetor Mounting Kit
CMK -2
1957-65 XLCH Sportster
3 each - 27412-57 insulator
2 each 27410-57 intake gasket

USA Made

$ 13.95

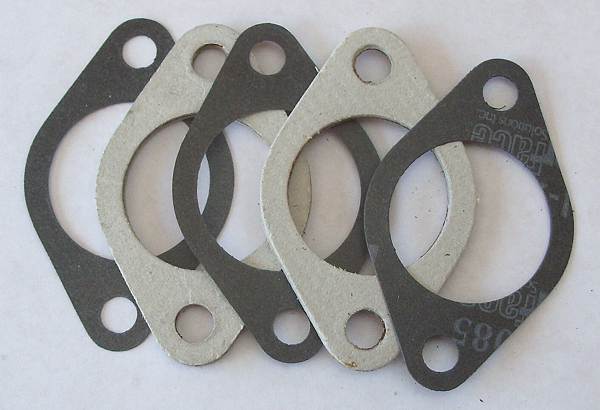

Carburetor Mounting Kit
CMK -3
1966 Shovelhead Big Twin
2 each - 27412-57 insulator
2 each 27410-57 intake gasket

USA Made

$ 10.50


OEM # 27410-57
Intake manifold gasket
 1957 to 1966

Linkert DC carburetors
USA Made
$ 2.25 Each


#51
OEM # 27387-57
Nut, float valve


#52
OEM # 27433-57
Mounting bracket, 1957

#52
OEM # 27433-58
Mounting bracket, 1958-up

Tap 04

Special tap for DC model main nozzle threads.
Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punchu
nch.


$ 9.95


Tap 06

Special tap for
All Linkert / Schebler / DC model float bowl needle & seat threads., and used for the repair stud above.

All Linkerts, many Scheblers.
Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch.

  $ 11.95
