Adjusting the LInkert DC Model Carburetor
1) Make sure the throttle cable open &
closes the throttle fully
2)Lightly turn in both
high & losw speed needles until bottomed out - GENTLY

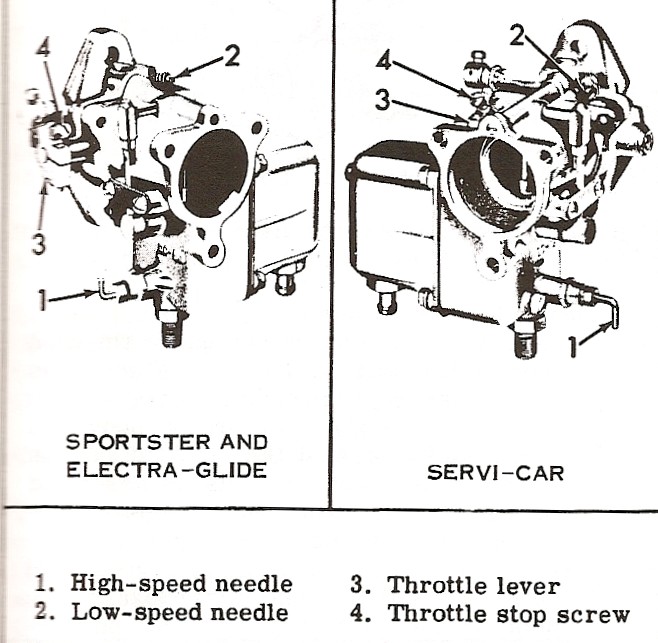

3)Low speed needle (2)
should be turned out ( conterclockwise) 1 1/2 turns.This is full
rich.
4) Start motor and let
warm up until choke is open. Turn low speed needle (2) in (clockwise)
until mixture leans
out and causes skipping. and near stopping. Back needle out (
counterclockwise)1/8 turn or until motor idle
smooths out with spark advanced and throttle closed.
Always
better running, and easier starting with engine slightly rich rather
than too lean.
5) Adjust throttle stop
screw (4) to desired idle with throttle closed. Clockwise = faster,
counterclockwise =
slower. Do NOT set at lowest idel or motor will be hard
starting.
6) Set high speed
needle after low speed is set. Run at varying speeds with spark fully
advanced. Generally the
high speed needle (1) will be set between 3/4 and 1 1/4 turns open.
|
